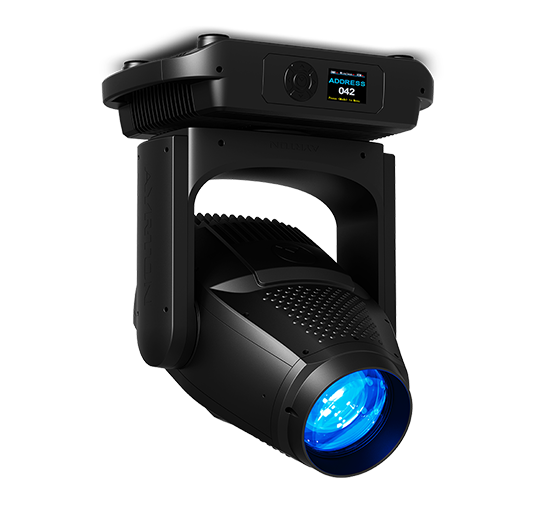

PERSEO PROFILE TC is the first compact multi-function luminaire with an IP65 enclosure
rating developed by AYRTON for intensive outdoor use. Equipped with a new 500 W
ultra-compact monochromatic LED source calibrated at 7000 K, PERSEO PROFILE TC
is specially designed for situations that require perfect colour rendition, has a native
colour rendering index greater than 90 and very high TM30 readings. AYRTON has
specifically developed the optics in PERSEO PROFILE TC to achieve an optimal
resolution-to-performance-to-efficiency ratio. They allow perfect image reproduction
and significant improvement from distortion caused by the shutter blades with wide
zoom. The optics produce a highly uniform flat beam with no hot spot, achieving a
perfect colour mix regardless of the colour combination selected. Fitted with a 148 mm
frontal lens, this proprietary system has 13 lenses, delivering an 8:1 zoom ratio and
a zoom range of 7° to 58°. AYRTON has endowed this next generation luminaire
with a new minimalist design in lighter weight die-cast aluminium, incorporating
full weather-proofing features that ensure easy accessibility. For greater efficiency,
PERSEO PROFILE TC is provided with a highly effective phase-change liquid cooling
system fitted with four submersible fans located outside the watertight enclosure.
The ultimate in versatility, designed for multiple outdoor and indoor applications,
PERSEO PROFILE TC boasts feature-rich standard equipment including a subtractive
CMY colour mixing system combined with a variable CTO and a wheel with six
complementary colours that produces an infinite palette of vivid pastels and saturated
colours. The framing section allows accurate positioning of four shutter blades on a
100% surface area in all positions, so that the user can frame any object regardless
of the luminaire’s position. The image section includes 18 interchangeable HD glass
gobos on two wheels: one rotating wheel with seven positions and one fixed wheel
with eleven positions. The effects section includes a continuous dynamic effects
wheel; a 15-blade iris diaphragm; two frost filters, one soft edge, one hard edge;
and two rotating prisms, one circular with 5 facets and one linear with 4 facets.
PERSEO PROFILE TC presents a sleeker, updated, industrial design, with perfectly
straightened yoke arms, a minimalist base and a new water-resistant menu navigation
system. PERSEO PROFILE TC can be controlled by DMX-RDM, ArtNet™ or a wireless
link using CRMX TiMo RDM from LumenRadio™.
