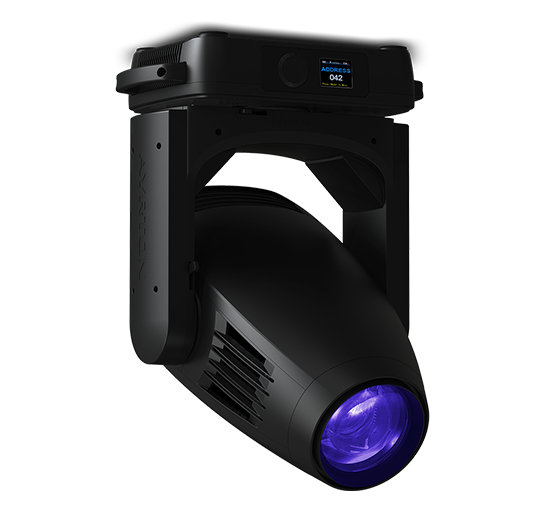

AYRTON has once again pushed the limits with a newly designed “profifile” luminaire...
KHAMSIN S... squeezing a 750 W LED module into the highly compact GHIBLI format,
while offering 60% more light output. To make the luminaire this compact, AYRTON
has completely redesigned its internal structure by using cast aluminium sides. The
size of the cooling system also had to be dramatically reduced and made even more
efficient. This high-end luminaire also features a double rotating gobo wheel on a
single axis that will allow you to achieve astonishing high-definition morphing effects.
The proprietary optical system, fitted with 13 lenses, features a 158 mm frontal lens
and delivers an 8:1 zoom ratio and a zoom range of 7° to 58°. The high-quality optics
offer excellent image reproduction and produce an extremely uniform flat beam with
no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour
combination selected.
KHAMSIN S is designed for scenic applications. It is equipped with a new LED module,
delivering powerful metallic white light with record-breaking output of 40,000 lumens
and a colour temperature of 7000 K. Feature-rich from the factory, KHAMSIN S includes
a CMY colour mixing system, which, combined with a variable CTO and one wheel
with six complementary colours, produces an infinite palette of vivid pastels and
saturated colours. The framing section allows accurate positioning of four shutter
blades on a 100% surface area in all positions, so that the user can frame any object
regardless of the luminaire’s position. The effects section includes two wheels with
six interchangeable HD glass gobos; a continuous dynamic effects wheel; a 15-blade
iris diaphragm; two frost filters: one light frost, one heavy frost; two rotating prisms:
one circular with 5 facets, one linear with 4 facets. KHAMSIN S is the perfect lighting
solution for large venues, such as arenas and stadiums dedicated to major events.
