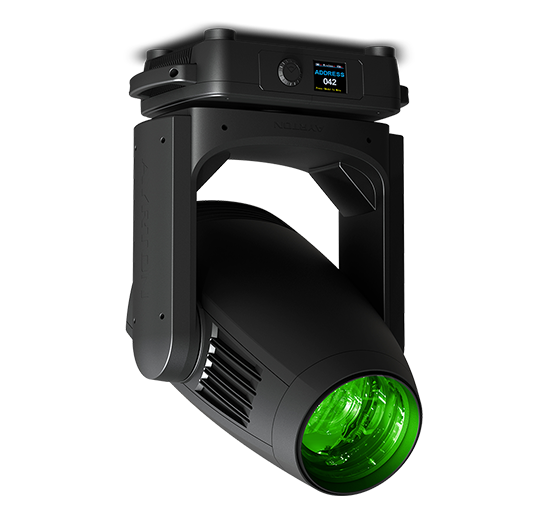

A new addition to the 6 Series, EURUS PROFILE TC is the first multi-function profile
luminaire launched under the new Slim-21TM programme for miniaturising fixtures and
reducing their weight. AYRTON has developed a new high-efficiency power supply in
an entirely new die-cast aluminium base that takes up 33% less volume than in other
luminaires of the same category. A lighter internal structure and all-new miniaturised
stepper motors add to the final result. This new luminaire boasts optics specifically
developed for applications requiring perfect image reproduction and significantly
reduced distortion caused by the shutter blades in wide zoom. Fitted with a 170 mm
frontal lens, the proprietary optical system uses 13 lenses, producing an 11:1 zoom
ratio and a zoom range of 4.5° to 50°. EURUS PROFILE TC is geared for applications
that require perfect colour rendition, using a monochromatic light source with a native
colour rendering index greater than 90, at a colour temperature of 6200 K.
Feature-packed from the factory, EURUS PROFILE TC includes a subtractive CMY colour
mixing system combined with a variable CTO and a seven-position complementary
colour wheel for displaying an infinite palette of vivid pastels and saturated colours.
In addition, the colour section contains two additional filters for optimising the colour
rendering index and TM30 readings. The framing section allows accurate positioning
of each shutter blade on a 100% surface area in all positions, so that the user can
frame any object regardless of the luminaire’s position. The image section includes
18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven
positions and one fixed wheel with eleven positions. The effects section includes
one continuous dynamic effect-wheel, 15-blade iris diaphragm, two frost filters (one
for light and one for heavy diffusion), two combinable rotating prisms (one circular
with 5 facets and one linear with 4 facets). EURUS PROFILE TC has a highly efficient
phase-change liquid cooling system using a heat pipe that includes a particularly
effective ultra-silent ventilation mode, designed for stage and studio applications.
