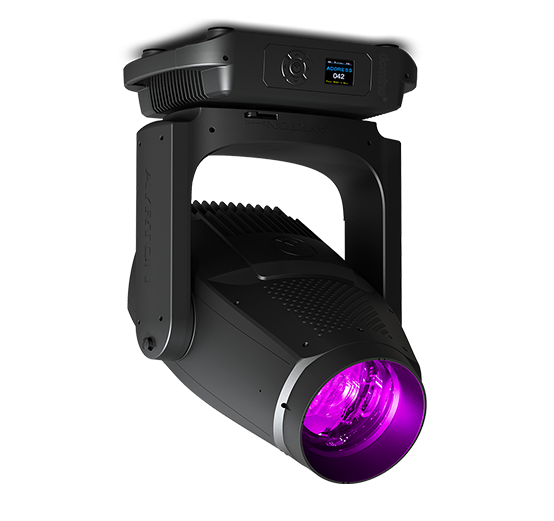

A new member of AYRTON’S IP65 multi-function luminaire family designed for
intensive outdoor use, DOMINO PROFILE S is a marvel of technology that combines
extraordinary light power with full-featured standard equipment. Equipped with
an entirely new 1000 W monochromatic high-efficiency LED emitter calibrated at
8000 K, DOMINO PROFILE S can deliver powerful metallic white light with record output
of 51,000 lumens at a colour temperature of 7000 K, when operating at a steady state.
Designed around the exceptional optics of HURACÁN PROFILE, this luminaire was
specifically developed to achieve an optimal resolution-to-performance-to-efficiency
ratio. These optics deliver an extremely uniform flat beam with no hot spot and
reproduce high-definition images impeccably. Fitted with a 178 mm frontal lens, the
proprietary optical system uses 13 lenses, producing a 10:1 zoom ratio and a zoom
range of 6° to 60°. Designed to operate in the most extreme situations, DOMINO
PROFILE S can resist hot or cold temperatures, wind, rain, hail, salt fog, sand and dust.
It can withstand arid environments, heavy rainfall, and sudden climatic variations.
AYRTON has included all the weatherproofing features of PERSEO PROFILE S in this
new IP65 luminaire and given it the same minimalist design. With its new high
efficiency power supply and die-cast aluminium frame, the luminaire uses the same
base design in a reduced visual footprint. For maximum effectiveness, DOMINO
PROFILE S has a liquid cooling system fitted with six submersible fans outside its
weatherproof enclosure. Feature-rich from the factory, DOMINO PROFILE S includes a
subtractive CMY colour mixing system combined with a variable CTO and a wheel with
six complementary colours. The framing section allows accurate positioning of each
shutter blade on a 100% surface area. The image section includes 14 interchangeable
HD glass gobos on two wheels. The effects section contains two continuous dynamic
effect-wheels, a CMY multi-layered wheel for creating multi-coloured effects, a
standard monochromatic effect-wheel, a 15-blade iris diaphragm, two frost filters (one
for light and one for heavy diffusion), two rotating prisms (one circular with 5 facets
and one linear with 4 facets). DOMINO PROFILE S is The Master of the Elements,
ready for the most extreme conditions.
