OPTICS
• 13-element 12:1 zoom
• Beam aperture: 6.2° to 75°
• 210 mm frontal lens
LIGHT SOURCE
• 68,000 lumens white light engine
• Luminaire output: up to 45,000 lumens
• Colour temperature output: 6000 K
• CRI: greater than 80
• Rated life (L70): up to 40,000 hours
• Flicker-free source
MOVEMENT
•Highly accurate positioning
• Resolution: 8- or 16-bit
• Smooth movement
• Pan and tilt with automatic repositioning
• Range: 540° (pan), 270° (tilt)
COLOURS
• Sophisticated CMY colour mixing
• Variable CTB, CTO, CTP
• 6 complementary colours
GOBOS
• 7 indexable rotating gobo
•Adjustable-speed rotating gobo
•Gobo diameter: 30.0 mm
• Image diameter: 25.0 mm
•Gobo thickness: 1.1 mm
FRAMING SYSTEM
• 4 individually barndoors
• Positionable on 100% surface area
• Rotation of the module: +/- 90°
IRIS DIAPHRAGM
• 15-blade iris diaphragm
• Range: 15% to 100% open
FROST
• 0% to 100% variable linear frost
EFFECTS
• Colour graphic animation effect-wheel
• Indexable de-focusable rotating beam
shaping optic
• Continuous rotation in both directions
DIMMER / STROBE
• Electronic dimmer from 0 to 100%
• Strobe effect: 1 to 25 flashes per second
HARDWARE FEATURES
•Graphic LCD display with flip function
• 5 menu buttons to set the functions
• Integrated LumenRadio™ receiver
• IP65 XLR 5 pin connectors
• IP65 RJ45 connectors
• IP65 powerCON TRUE1 TOP connector
CONTROL
•DMX 512 protocol
•DMX-RDM compatible
• Stand-alone mode, local control panel
•ArtNet™ & sACN protocol
• 3 DMX modes (37 to 61 DMX channels)
POWER SUPPLY
• 120 to 240 Volts – 50/60 Hz
• Power: 1,600 W maximum
COOLING SYSTEM
•Advanced liquid cooling system
• IP68 self-adjusting variable speed fans
• Selectable ventilation user modes
• Excess-temperature protection
HOUSING
• Skeleton made of die-cast aluminium
• Base in die-cast aluminium
•Moulded covers in ABS PC (V0 class)
• Two-side handles
• Four heavy-duty feet
• IP65 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Two Omega ¼ turn brackets
• Eight ¼ turn routing points
• Safety cable attachment point
OPERATING PARAMETERS
•Maximum temperature: 45° C (113° F)
•Minimum temperature: -20° C (-4° F)
•Minimum usage distance: 3.0 m (9.84 ft)
COMPLIANCE
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
•US Safety: UL 1573 & FCC Part 15,
Subpart B: 2018
SIZE
• Product: 490 x 821 x 330 mm (l x h x d)
• Foam: 715 x 665 x 555 mm (l x h x d)
WEIGHT
• Product: 52 kg
PRODUCT CODE

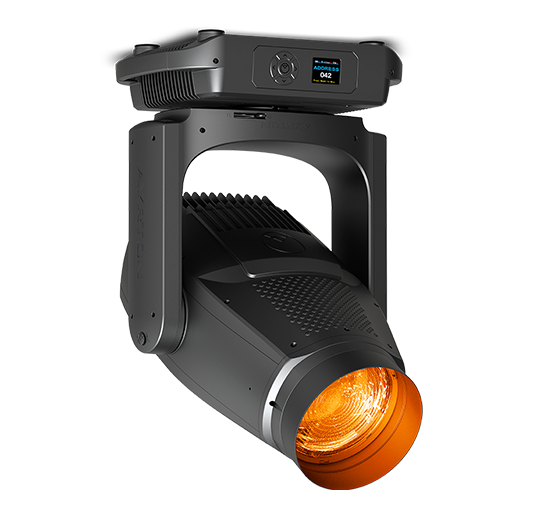

• 012883: DOMINO WASH ST
