Optics

Beam aperture: 3.5°

85% optic efficiency

6 x 94mm PMMA collimator optic

Light source

6 x 1,000 lumens RGBW High-Power LED source

Light output: up to 5,100 lumens

Luminous intensity: 1,080,000 cd (narrow beam)

Rated life (L70): up to 40,000 hours

Flicker free sources management, suitable for TV applications and all video recorded events

Movement

Extremely accurate positioning

Moving-head operated via either 8- or 16-bit resolution

High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.

Pan and tilt automatic repositioning

Moving-head range: 8 independent infinite rotation

Colours

Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index

Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues

4.29 billion colours (8 bit resolution)

Virtual colour wheel, including most usuals white colour temperature presets

Dynamic colour macro effect with variable speed

Effects

2D & 3D graphical effects capabilities

Effects can be coupled with beam, wash or matrix applications

Built-in pattern effects with speed and fade controls for scenic applications

Dimmer / strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation

White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel

Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller

Information menu including hour counter, temperature, software version

Hardware facilities

Graphic LCD display for addressing and special functions settings, with flip function

6 menu buttons to set the functions

Excess temperature protection

Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™

XLR 5 pin male and female connectors for DMX connection

etherCON RJ45 IN / OUT connectors for ArtNet™ connection

powerCON TRUE1 male and female connectors for power connection

Control

DMX 512 protocol, through DMX cable or wireless system

DMX-RDM compatible

Stand-alone mode and Master/Slave modes

ArtNet™ & sACN protocol through Ethernet cable

Local control panel, with LCD display

Choice of 5 DMX modes (from 16 to 52 DMX channels)

Power supply

Electronic supply with active PFC

100 to 240 Volts – 50/60 Hz

Power 450 W maximum

Cooling system

Advanced cooling system

Self adjusting variable speed fans for quiet operation (Auto mode)

Selectable auto, stage & studio ventilation modes

Safety protection against temperatures excesses

Housing

Moving-head skeleton made of aluminium and steel metal plates

Heatsinks in aluminium

Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)

Two sides handles for transportation

Four heavy-duty feet for better stability

IP20 protection rating

Exterior finish: black (Carbon)

Installation

Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps

Mounting points: four 1/4 turn locking fittings allowing

Installation of Omega brackets on luminaire

Safety cable attachment point

Operating parameters

Operating positions: all (device on floor or fixed to a support)

Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)

Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)

Minimum usage distance: 2.0 m (6.56 ft)

Compliance

EU (EMC):

EMC Directive 2014/30/EU

EU (LVD):

LVD Directive 2014/35/EU

US Safety:

UL 1573

Size

Product: 547 x 681 x 348 mm (l x h x d)

Flight-case foam: 627 x 725 x 414 mm (l x h x d)

Weight

Product: 29.8 kg

Product codes

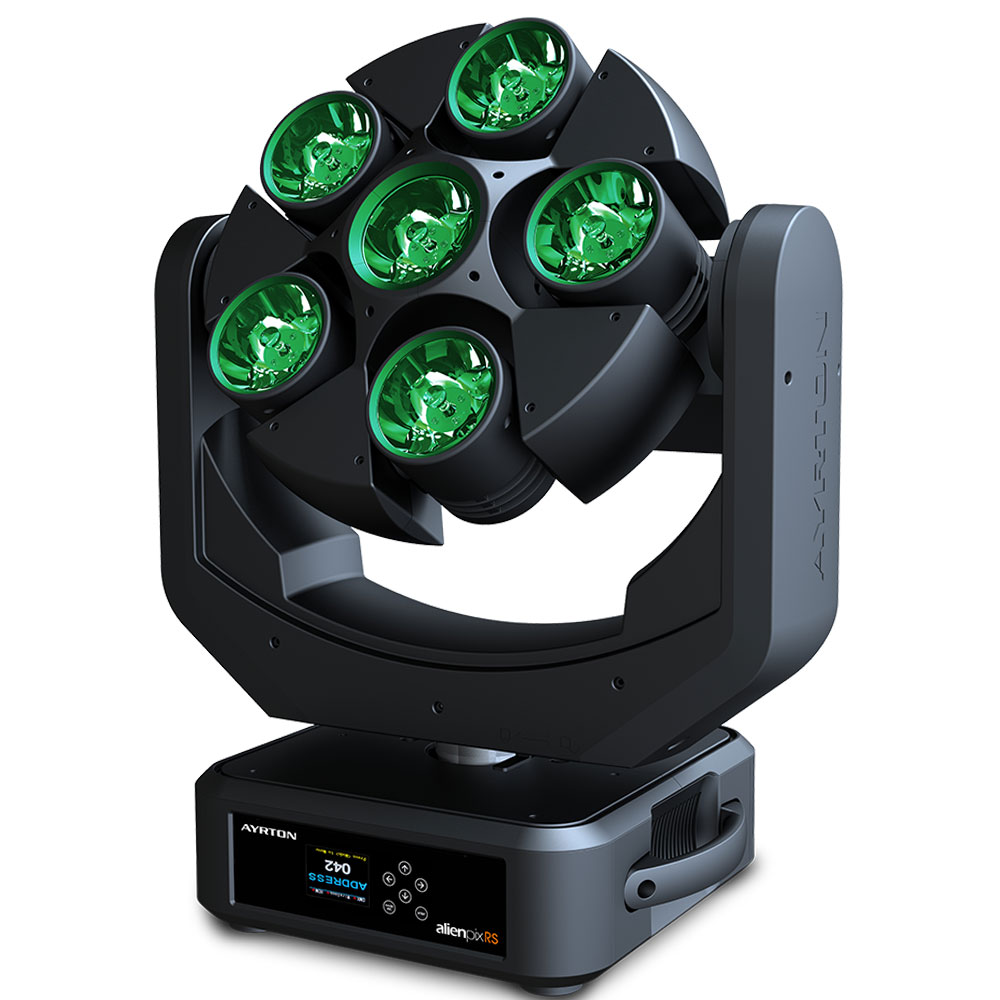

015850: ALIENPIX-RS CREATIVE SOLUTION
