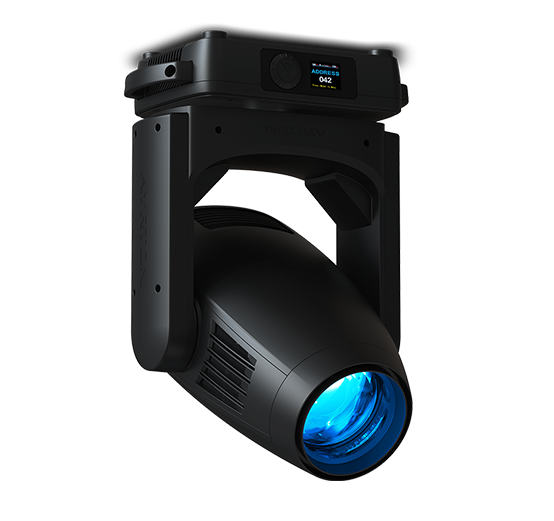

AYRTON has once again pushed the limits with MISTRAL S, a versatile, new fully
equipped 300 W spot luminaire in the same ultra-compact format as MERAK. Its new
13-lens proprietary optical system delivers a 8:1 zoom ratio with a zoom range of
7° to 53°. The optics, equipped with a 119 mm frontal lens, can achieve an extremely
uniform flat beam that can render images perfectly in all conditions and at any beam
angle. Designed for scenic applications, MISTRAL S is equipped with an entirely
new LED module using a monochromatic light source calibrated at 8000 K, delivering
powerful metallic white light with record-breaking output of 18,000 lumens and a
colour temperature of 7000 K.
Feature-rich from the factory, MISTRAL S includes a CMY colour mixing system
combined with a variable CTO and a seven-position complementary colour wheel
for producing an infinite palette of vivid pastels and saturated colours. The effects
section includes 16 interchangeable HD glass gobos on two wheels: one rotating
wheel with seven positions and one fixed wheel with nine positions. Its continuous
dynamic effects wheel can be used in combination with the two gobo wheels to create
unique graphical effects. MISTRAL S also features a 15-blade iris diaphragm, a five
facet rotating prism, and a soft-edge frost filter as standard equipment. MISTRAL S
has a highly efficient phase-change liquid cooling system using a heat pipe that
includes a particularly effective Silent ventilation mode, designed for studio and
theatre applications.
