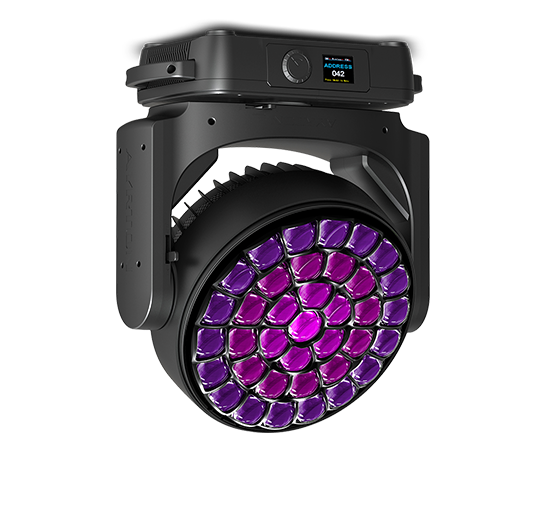

ZONDA 9 WASH is the first luminaire in a new family of products devised for stage
lighting, equipped with a high-performance 40 W LED source with RGB+W additive
colour synthesis. This fixture offers a proprietary optical system consisting of a wide
dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides
with an output surface made of an optical micro-structure. This LED/optical system
combination can produce powerful light output of 25,000 lumens and a perfectly
homogeneous mixture of pastel and saturated colours, regardless of the colour mix
chosen. The perfectly crisp separation between the light sources helps to reinforce
the level of contrast. Endowed with a 50 mm truncated transmitting lens with an
optical surface equivalent to that of a 70 mm round lens, ZONDA 9 WASH can obtain
a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°.
A new optimised cooling system, simplified lens guidance systems, and ever smarter
design of the internal structure have made it possible to reduce the size and weight of
the luminaire considerably Slim-21TM. ZONDA 9 WASH is a radical luminaire intended
for stage lighting in the true sense. The careful colour mixing of the sources allows for
perfect colour reproduction. You can control each concentric circle to adjust the size of
the emitting surface and the luminaire’s power. A complete library of pre-programmed
colours created in collaboration with lighting designers is instantly accessible. A silent
ventilation mode was specially developed for this fixture. ZONDA 9 WASH is a marvel
of technology geared for creativity
